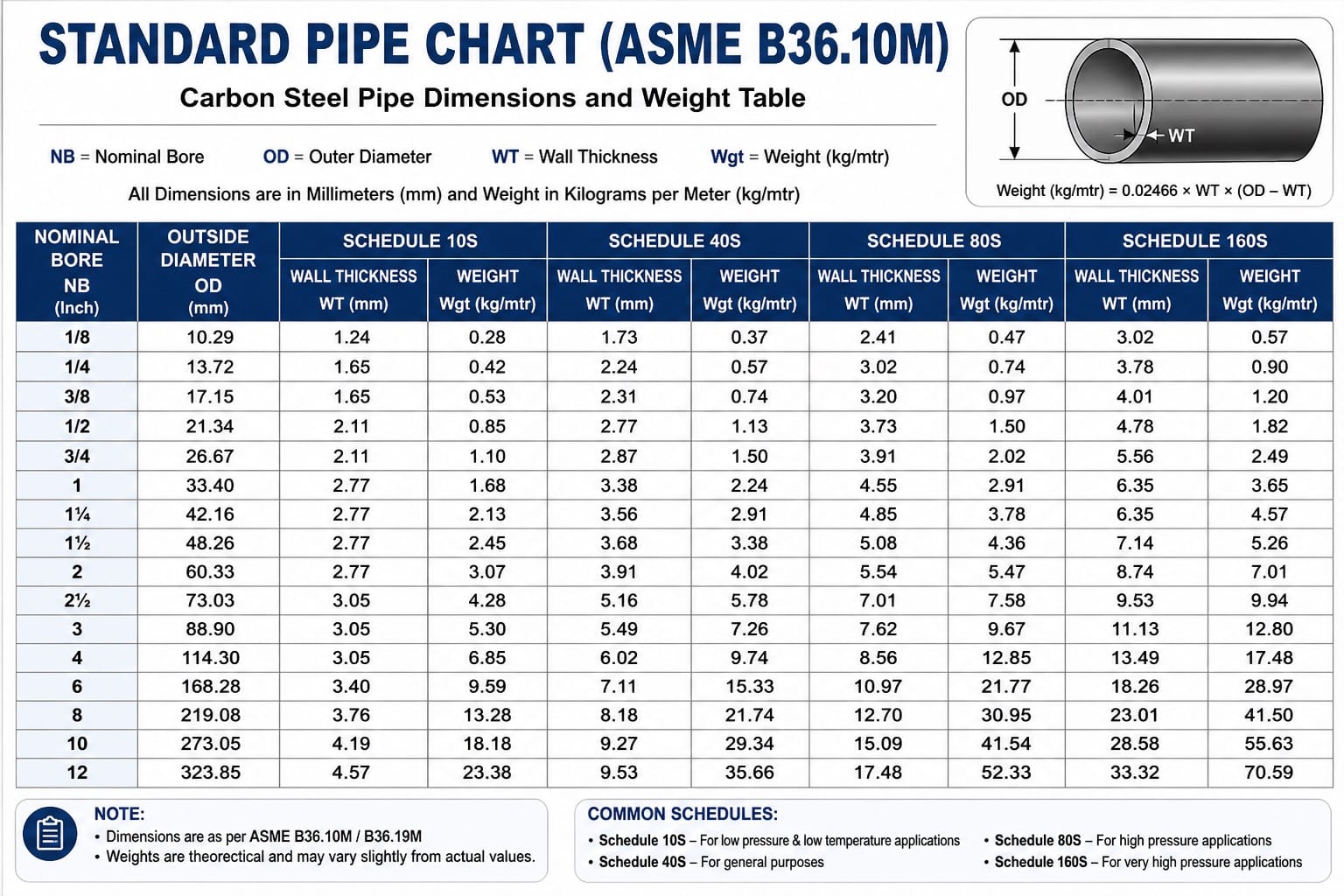

This standard pipe chart provides complete pipe size details including NB, OD, wall thickness and weight per meter based on ASME standards. In addition, it helps engineers and fabricators select correct pipe sizes for design and estimation work.
◯ Standard Pipe Weight Calculator
You can also use our pipe weight calculator, flange weight calculator, and plate weight calculator for complete fabrication calculations.
For official pipe standards, refer to ASME and ISO.
Why Use Standard Pipe Chart?
A standard pipe chart helps engineers select correct pipe sizes quickly. In addition, it provides accurate data for weight calculation and fabrication planning. Therefore, it reduces errors and improves efficiency in projects.
Pipe Schedule Explained
Pipe schedule defines wall thickness of the pipe. For example, higher schedule means thicker pipe and higher strength. Therefore, selecting the correct schedule is important for pressure applications.
